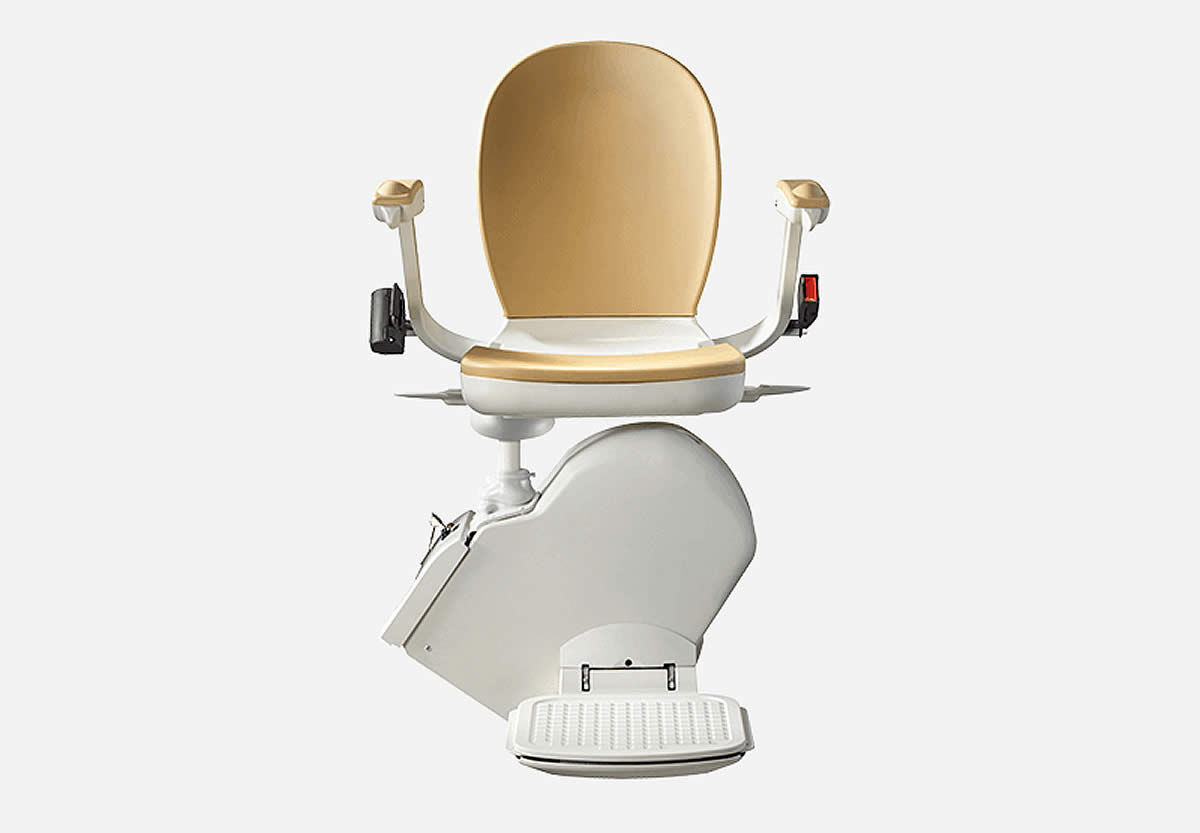

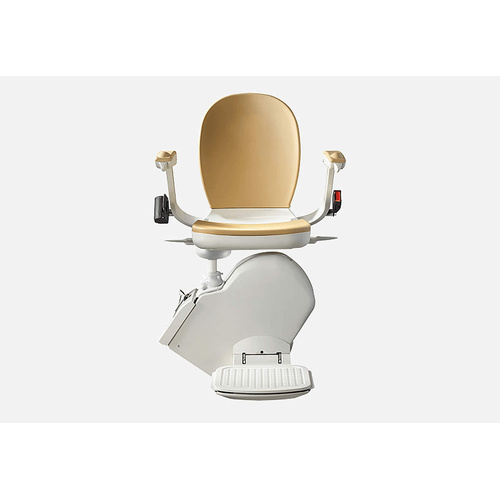

The Acorn 130 Stairlift
A straightforward solution for straight staircases.

A straight stairlift is the ultimate staircase solution, giving you the full use of the home you love. Blending seamlessly into your home, with a smooth start and stop mechanism, you can glide effortlessly up and down the stairs.

Continually developed, improved and refined over many years, the Acorn 130 is the direct descendant of our very first straight stairlift, the Acorn Superglide. Contact us for FREE no obligation advice and speak to one of our friendly experts.

Stairlift Hinged Rail Option!

All Acorn Stairlifts are available with a unique hinged rail option, designed to eliminate any obstruction or trip hazard at the foot of the stairs. Acorn Stairlifts have all the features you need, and none you don't!

Motor Output Speed No greater than 0.15 metres per second
Method of Drive Rack and Pinion
Carriage Power 24V DC batteries
Motor Power 0.25 kW
Maximum Capacity 127 kg
Maximum Capacity (HD Version) 159 kg
Power Supply Input Range 50–60 Hz, 120–240V AC
Angles
Standard Indoor 130
Short seat post 40-55°
Standard seat post 29-55°
Tall seat post 23-55°
Power Swivel 130
Standard seat post 36-55°
Tall seat post 23-55°
Outdoor 130
Standard seat post 27-55°
Maximum Rail Length
10 metres 394 inches
Acorn Stairlifts user manual
Download PDF
