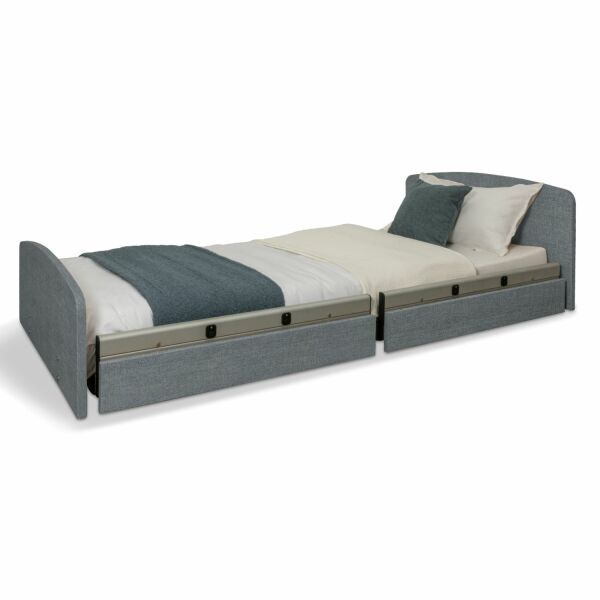

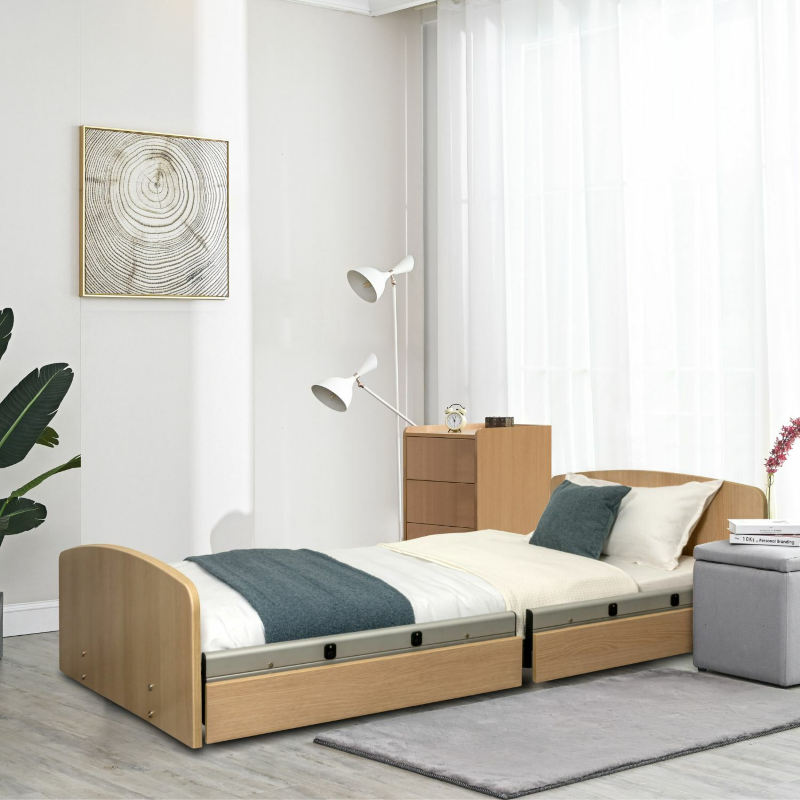

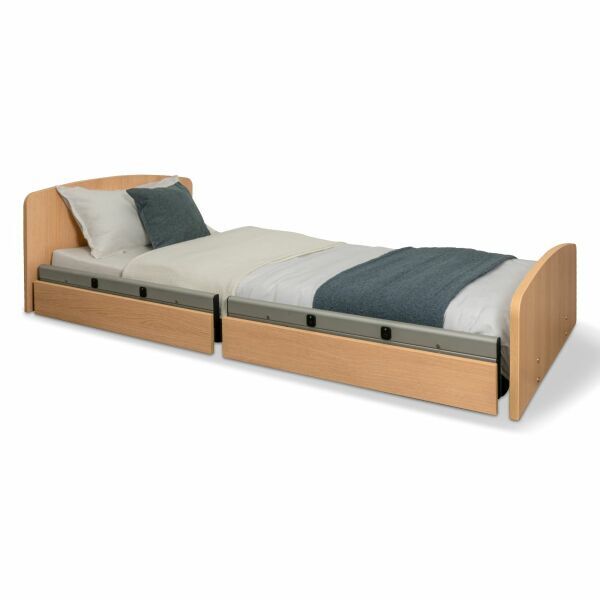

Icare Gravitate G6 floorline bed has all the requirements for comfort and care. The essential functions of head lift and knee break, with height adjustment and trendelenburg. The G6 can be lowered to ground level to prevent falls.

Soft Touch Option - The G6 Soft touch provides a soft touch on the head and foot ends and on the optional split side rails for user protection and comfort and an aesthetically pleasing look.

  • Standard with headboards and footboards
  • Emergency battery back-up lowering.
  • Collapsible design for smaller rooms
  • 220kg Safe Working Load
  • Auto regession backrest.

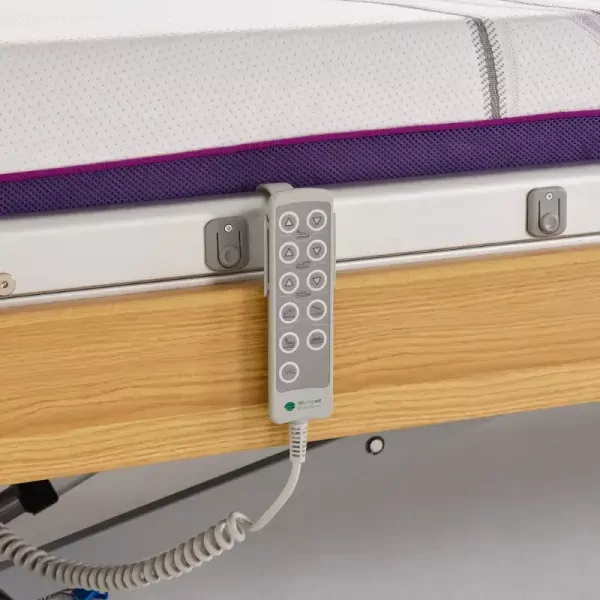

  • Backlit wipeable hand control with full or semi lock out.
  • Exit sensing underbed lighting.

ONE SIZE: Single. Mattress Platform: 1900 x 900mm

Note: All rails and optional extras must be ordered separately. Headboard and footboard are the same height. Images indicative only.

Colors between imagery and actual product may vary, due to manufacturing variations.

Fabrics chart

Gravitate Care Beds

Icare Medical Group warrants the Gravitate Healthcare Beds and parts to the Customer against defective materials and defective workmanship, from date of invoice.

  • Steel Frame of Bed - 5 Year Limited Warranty
  • Actuators - 2 Year Limited Warranty
  • Control Box - 2 Year Limited Warranty
  • Castor wheels - 2 Year Limited Warranty
  • Hand Piece - 2 Year Limited Warranty
  • Upholstery and Fabric - 2 Year Limited Warranty



Specifications:

Safe Working Load 220 kg (includes any model of iCare mattress)
Hand Piece Wipeable and backlit. Full lock-out and semi lock-out modes.
Fabric Soft touch, hard wearing commercial grade fabric. Vinyl treated with antibacterial properties.
Protection Class IPX4
Head Lift Angle 80°
Knee Break Angle 45°
Height Adjustment 110 mm – 800 mm (measured from floor to top of mattress platform)
Extendable Length Yes
Wheels Large lockable heavy duty swivel castors with direction castors on one end.
Safety No pull motors for added safety.
G6 Spec Sheet
Download PDF
